Big beetle, small beetle...


Post new topic   Reply to topic    www.photomacrography.net Forum Index -> Macro and Close-up Archives
View previous topic :: View next topic
Author Message
rjlittlefield
Site Admin


Joined: 01 Aug 2006
Posts: 17614
Location: Richland, Washington State, USA

PostPosted: Sun Nov 05, 2006 10:37 am    Post subject: Big beetle, small beetle... Reply with quote

I posted out this shot last night as part of a technical discussion.

But maybe you'll find it interesting as a picture, too.



The larger beetle is a Long Horned Wood Borer (Coleoptera:Cerambycidae), total body length 75 mm from posterior to mandibles. It's from Scottsdale, Arizona -- I found it lying belly up on a sidewalk outside a hotel room years ago. The smaller one is a Carpet Beetle (Coleoptera:Dermestidae), total body length 2.5 mm. It turned up in one of my windowsills at Richland, Washington.

The subjects are posed, of course.

--Rik

Canon 300D, Sigma 105mm at f/8. Shot at 1:1.5, cropped for presentation. Reproduced here at about 16X life size.
Back to top
View user's profile Send private message Visit poster's website
beetleman



Joined: 04 Aug 2006
Posts: 3578
Location: Southern New Hampshire USA

PostPosted: Sun Nov 05, 2006 12:39 pm    Post subject: Reply with quote

very good photo Rik, I like it alot Laughing I love the wrap-around eyes on these large longhorn beetles and you are right, I never find carpet beetles in the carpet, always on the window Wink

EDIT: A question on your technical discussion. How do you come up with the length of your scale bar. Do you measure something on your specimen...easy in this case, and draw it in during processing? I know it is different for Micro.
_________________
Take Nothing but Pictures--Leave Nothing but Footprints.
Doug Breda
Back to top
View user's profile Send private message Send e-mail
rjlittlefield
Site Admin


Joined: 01 Aug 2006
Posts: 17614
Location: Richland, Washington State, USA

PostPosted: Sun Nov 05, 2006 3:28 pm    Post subject: Reply with quote

beetleman wrote:
How do you come up with the length of your scale bar. Do you measure something on your specimen...easy in this case, and draw it in during processing? I know it is different for Micro.

Nope, no different at all -- you just get to use a bigger measuring stick for Macro. Wink

The key trick is to shoot a picture of a physical ruler using the same lens settings -- including focus -- as you used with the subject. Then just use your favorite photo editing tool to transfer a measurement from the ruler image to the subject image.

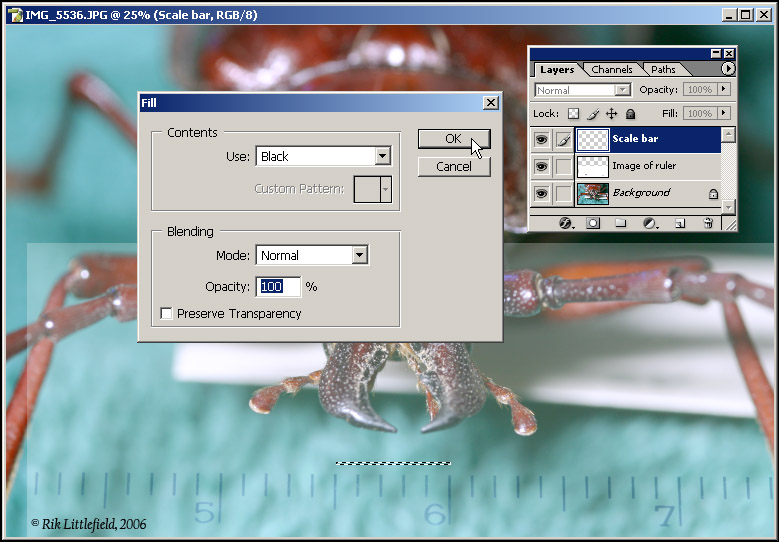

The picture below illustrates one approach.

Using Photoshop, I added the image of the scale over the image of the beetle. I set the image of the scale to 25% opacity so I could see the beetle through it. Looking at the beetle and ruler together, I decided that a 5 mm bar would work well. Using the marquee tool, I selected a region a couple of pixels high and however wide it needed to be, to line up with 5 mm on the ruler. Then I filled with black in another layer, to draw the scale bar. The job was completed by removing the layer containing the image of the scale, and adding "5 mm" as a text layer.



I always do these things as layers so I can freely move them wherever they need to go to fit with the picture.

My smaller subjects sometimes need a scale bar less than a millimeter long. In those cases, I've traditionally used a slightly different approach involving some number-crunching to figure out how many pixels wide the scale bar needs to be. It's described here.

--Rik
Back to top
View user's profile Send private message Visit poster's website
beetleman



Joined: 04 Aug 2006
Posts: 3578
Location: Southern New Hampshire USA

PostPosted: Sun Nov 05, 2006 5:03 pm    Post subject: Reply with quote

Thanks Rik, I do have a small metal ruler with the smallest marks of .5mm. Like Wim says...I will have to remember to take the picture of the ruler Wink Thanks again for the info.
_________________
Take Nothing but Pictures--Leave Nothing but Footprints.
Doug Breda
Back to top
View user's profile Send private message Send e-mail
Cyclops



Joined: 05 Aug 2006
Posts: 2931
Location: North East of England

PostPosted: Mon Nov 06, 2006 9:21 am    Post subject: Reply with quote

That was so cool,at first I thought, aye up wheres the second pic! Then I had another look and saw the tiny one on the big ones face!
Neat trick with the ruler BTW.
_________________
Canon 30D | Canon IXUS 265HS | Cosina 100mm f3.5 macro | EF 75-300 f4.5-5.6 USM III | EF 50 f1.8 II | Slik 88 tripod | XSP-13A Student monocular scope
Back to top
View user's profile Send private message Visit poster's website MSN Messenger
