Foot of a jumping spider
Goto page 1, 2  Next

Post new topic   Reply to topic    www.photomacrography.net Forum Index -> Macro and Close-up Archives
View previous topic :: View next topic
Author Message
rjlittlefield
Site Admin


Joined: 01 Aug 2006
Posts: 17873
Location: Richland, Washington State, USA

PostPosted: Sat Oct 14, 2006 11:57 pm    Post subject: Foot of a jumping spider Reply with quote

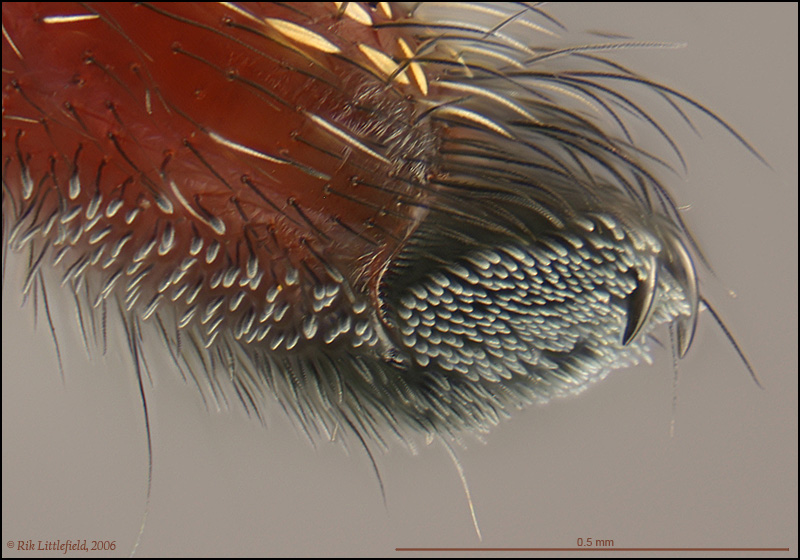

The feet of a jumping spider are covered with lots and lots of hairs, organized as numerous larger hairs each tipped with a tuft of much finer hairs called "setules". The setules are attracted to solid surfaces by very short-range van der Waals forces that can be broken and re-established an indefinite number of times without weakening. Individually, the attractive forces are tiny, but summed over the huge number of them, the aggregate force can be 170 times the weight of the spider! At least, that's what these articles say: "Spiders make best ever Post-it notes" and "Spiders get a grip".

An optical image like I've posted here doesn't have enough resolution to show the individual setules, but I believe the tufts of them can be seen as fuzzy gray blobs at the ends of the black hairs.

Another interesting feature visible in this image is some "beading" visible on many of the long sensory hairs. At first I thought this might be an artifact of the stacking procedure. But the beading is present even in individual frames, so I think it's real. What is its significance, I have no idea.

It's the usual situation -- get close, get questions. Extreme close-ups are seldom boring! Very Happy

--Rik
Canon 300D, 10X NA 0.25 achromat on 180mm extension, stacked by Helicon Focus at 0.00025 inch. Cropped to about one half frame width, shown here at about 200X.
The web page linked above references an article published 19 April 2004 in the Institute of Physics journal Smart Materials and Structures).
More info and additional pictures can be found by visiting http://www.iop.org/ and searching for "setules".
Back to top
View user's profile Send private message Visit poster's website
MacroLuv



Joined: 28 Aug 2006
Posts: 1964
Location: Croatia

PostPosted: Sun Oct 15, 2006 12:15 am    Post subject: Reply with quote

Wow! Great. Shocked I think Gecko lizards uses van der Waals forces too. Very Happy
_________________
The meaning of beauty is in sharing with others.

P.S.
Noticing of my "a" and "the" and other grammar
errors are welcome. Very Happy
Back to top
View user's profile Send private message Send e-mail
rjlittlefield
Site Admin


Joined: 01 Aug 2006
Posts: 17873
Location: Richland, Washington State, USA

PostPosted: Sun Oct 15, 2006 12:37 am    Post subject: Reply with quote

MacroLuv wrote:
I think Gecko lizards uses van der Waals forces too. Very Happy

Yep, that's mentioned in one of the articles I linked.

--Rik
Back to top
View user's profile Send private message Visit poster's website
DaveW



Joined: 04 Aug 2006
Posts: 1702
Location: Nottingham, UK

PostPosted: Sun Oct 15, 2006 12:40 am    Post subject: Reply with quote

Got a good set of claws too!

DaveW
Back to top
View user's profile Send private message
rjlittlefield
Site Admin


Joined: 01 Aug 2006
Posts: 17873
Location: Richland, Washington State, USA

PostPosted: Sun Oct 15, 2006 1:26 am    Post subject: Reply with quote

DaveW wrote:
Got a good set of claws too!

Indeed, and I notice they're kind of retractable. Depending on position of the leg and I don't know what else, the claws can extend way beyond the pad of hairs as shown above, or hide completely behind it.

Come to think of it, I guess that makes a lot of sense. Sometimes the spider needs to use the hairs for adhesion to some surface, and it would not be good if many of the hairs were held away from the surface by the claws. But when the claws are needed, they'll work a lot better if they stick out beyond those really pretty stiff hairs. Very clever, the way these critters are put together!

--Rik
Back to top
View user's profile Send private message Visit poster's website
Ken Ramos



Joined: 27 Jul 2006
Posts: 6947
Location: lat=35.4005&lon=-81.9841

PostPosted: Sun Oct 15, 2006 4:09 am    Post subject: Reply with quote

Rik said:
Quote:
Very clever, the way these critters are put together!


...but oh so easy to dismantle them! Twisted Evil

Quite an interesting post here Rik. It is fascinating though how they are constructed. Excellent photograph even though you could not resolve those van der Waals forces very well and I don't imagine I will be using them as post-it notes anytime soon. I wonder who names these anatomical parts anyway. Think
_________________
However, while there is grace where in all that I might live, while there is still breath in my being, while I may or may not accomplish anything more in life than to be living, I shall reflect upon the past, applying it to the present, for to possibly perceive to a near certainty, the outcome of the future.

Ken 2014
Back to top
View user's profile Send private message
beetleman



Joined: 04 Aug 2006
Posts: 3578
Location: Southern New Hampshire USA

PostPosted: Sun Oct 15, 2006 5:24 am    Post subject: Reply with quote

Wonderful photo Rik. Very nice detail. I have read about the geckos but did not know the spiders did the same thing Shocked (I think your stack is better than the SEM picture in the article Wink )
_________________
Take Nothing but Pictures--Leave Nothing but Footprints.
Doug Breda
Back to top
View user's profile Send private message Send e-mail
rjlittlefield
Site Admin


Joined: 01 Aug 2006
Posts: 17873
Location: Richland, Washington State, USA

PostPosted: Sun Oct 15, 2006 10:41 am    Post subject: Reply with quote

beetleman wrote:
Very nice detail. I have read about the geckos but did not know the spiders did the same thing Shocked (I think your stack is better than the SEM picture in the article Wink )

Well, of course I just couldn't resist trying to get even closer.

Canon 300D, 20X NA 0.40 achromat on 150mm extension, cropped and resized to 80% of "actual pixels". Stacked at 0.0002 inch.


I'd be a bit surprised if this is resolving individual setules, which are described as "just hundreds of nanometres in width". Maybe they clump together -- I know that this beast had its feet wet and did not get a chance to clean them before posing. Or maybe this kind of spider has bigger setules. An SEM could tell us... Wink

But at least now we can see that those blobby ends are actually spatulate and that the gray stuff has some interesting texture.

We can also see that a bunch of the larger hairs are feathered. I'm not sure whether this explains the "beading" that I mentioned earlier, or whether that's a different structure.

Unfortunately this lens has a pretty small central area where the resolution is really good, so I'd have to pan a bit to put some of the beaded-looking things "front and center", and shoot another stack. Perhaps another time -- I have other things to do today.

Doug, thanks for the kind words about these high resolution stacks versus SEM. I have a zoologist friend who assures me that there are definitely situations where the stacks give more information, for example about colors and transparency. It'll be interesting to see how the biology community incorporates this technology now that it's (relatively) cheap and easy to do.

--Rik
Back to top
View user's profile Send private message Visit poster's website
Ken Ramos



Joined: 27 Jul 2006
Posts: 6947
Location: lat=35.4005&lon=-81.9841

PostPosted: Sun Oct 15, 2006 11:19 am    Post subject: Reply with quote

Well we all now know that spiders...don't have "toe cheese." Shocked An outstanding follow up image there Rik, cool Cool
_________________
However, while there is grace where in all that I might live, while there is still breath in my being, while I may or may not accomplish anything more in life than to be living, I shall reflect upon the past, applying it to the present, for to possibly perceive to a near certainty, the outcome of the future.

Ken 2014
Back to top
View user's profile Send private message
Cyclops



Joined: 05 Aug 2006
Posts: 2968
Location: North East of England

PostPosted: Mon Oct 16, 2006 9:33 am    Post subject: Reply with quote

Fantastic shot! I tried to get a similar shot of one of my Tarantula's foot but I couldnt get near enough DOF.
_________________
Canon 30D | Canon IXUS 265HS | Cosina 100mm f3.5 macro | EF 75-300 f4.5-5.6 USM III | EF 50 f1.8 II | Slik 88 tripod | Apex Practicioner monocular microscope
Back to top
View user's profile Send private message Visit poster's website MSN Messenger
Cyclops



Joined: 05 Aug 2006
Posts: 2968
Location: North East of England

PostPosted: Mon Oct 16, 2006 9:48 am    Post subject: some SEM images of setules Reply with quote

Rik, I did some googling and found some SEM images of these setules (I'm more familiar with the name setae, are these the smaller scale structures?)

http://images.google.co.uk/images?sourceid=navclient&ie=UTF-8&rls=GGLG,GGLG:2006-23,GGLG:en&q=setules

a SEM imnage of setae:
http://www.lclark.edu/~autumn/climbing/setae.html
_________________
Canon 30D | Canon IXUS 265HS | Cosina 100mm f3.5 macro | EF 75-300 f4.5-5.6 USM III | EF 50 f1.8 II | Slik 88 tripod | Apex Practicioner monocular microscope
Back to top
View user's profile Send private message Visit poster's website MSN Messenger
rjlittlefield
Site Admin


Joined: 01 Aug 2006
Posts: 17873
Location: Richland, Washington State, USA

PostPosted: Mon Oct 16, 2006 11:27 am    Post subject: Reply with quote

Cyclops, I'm not sure about the terminology. Based on what I think the sizes are, the "setae" of the gecko are like what I'm calling "hairs" (the black things that are about 100 microns long and have the fuzzy gray spatulate tips). If that's right, then the "setules" of the jumping spider would be equivalent to the "spatulae" of the gecko. See http://www.lclark.edu/~autumn/climbing/seta.html, showing "2 million setae per gecko" and "100-1000 spatulae per seta". Perhaps this is spelled out in the full articles, which I have not tried to track down yet.

The term "setae" (singular "seta") seems to mean different things in different contexts. When I Google "define: setae", I see consistency at the level of "hair", but not much below that. I've always gotten the impression that a seta is anything that looks like a bristle but is smaller than whatever we'd call a bristle on the organism in question.

Thanks for posting a link to those SEM pictures. If you can figure out how to see them at full size, I'd be grateful. Every time I try, I just get beamed back to http://www.iop.org/ , and when I try to work my way down from there, all I can find are the text articles and small versions of the pictures.

--Rik

PS. Excellent gecko pictures, complete with scale bars, can be found here. That url is linked a couple levels down from http://www.lclark.edu/~autumn/, following "Adhesive force of a single gecko seta".
Back to top
View user's profile Send private message Visit poster's website
georgedingwall



Joined: 01 Aug 2006
Posts: 207
Location: Invergordon, Scotland

PostPosted: Mon Oct 16, 2006 11:47 am    Post subject: Reply with quote

Hi Rik,

Great images and a fascinating subject.

I found this link to a page about jumping spiders feet. It has a couple of SEM images on the page.

http://whyfiles.org/shorties/152sticky_spider/

Bye for now.
_________________
George Dingwall

Invergordon, Scotland

http://www.georgedingwall.co.uk/
Back to top
View user's profile Send private message Visit poster's website
Cyclops



Joined: 05 Aug 2006
Posts: 2968
Location: North East of England

PostPosted: Mon Oct 16, 2006 11:49 am    Post subject: Reply with quote

I see what you mean Rik, very strange!
The first few pics are all from the same site (http://www.iop.org/ )

but others are located elsewhere and i managed to find a few:

http://www.technovelgy.com/graphics/content/spider-glue-setules.jpg

http://www.technovelgy.com/graphics/content/spider-glue.jpg


"At large magnifications it can be seen that single hairs (setae) are densely covered with numerous setules (image credit: Smart Mater. Struct. 13 512)":
http://nanotechweb.org/objects/news/3/4/13/Kesel.jpg
_________________
Canon 30D | Canon IXUS 265HS | Cosina 100mm f3.5 macro | EF 75-300 f4.5-5.6 USM III | EF 50 f1.8 II | Slik 88 tripod | Apex Practicioner monocular microscope
Back to top
View user's profile Send private message Visit poster's website MSN Messenger
DaveW



Joined: 04 Aug 2006
Posts: 1702
Location: Nottingham, UK

PostPosted: Mon Oct 16, 2006 1:05 pm    Post subject: Reply with quote

I am only familiar with the term setose as used in botany. Zoology and other disciplines may use it differently. Here's what our "bible" - "Botanical Latin" by William T. Stearn says:-

Seta. bristle, bristle-like organ, as the fruit stalk of a moss.

Setaceous, Setiformis. setaceous, bristle-like.

Setifer. bristle bearing.

Setose. setose, bristly, i.e. beset with scattered ascending stiff hairs.

Setulosus. minutely setose.

DaveW
Back to top
View user's profile Send private message
