Visualizing the effect of a microscope's condenser aperture


Post new topic   Reply to topic    www.photomacrography.net Forum Index -> Macro and Micro Technique and Technical Discussions
View previous topic :: View next topic
Author Message
rjlittlefield
Site Admin


Joined: 01 Aug 2006
Posts: 17510
Location: Richland, Washington State, USA

PostPosted: Sun Dec 09, 2007 2:19 pm    Post subject: Visualizing the effect of a microscope's condenser aperture Reply with quote



From time to time, somebody asks if there's an easy way to visualize what a microscope's condenser aperture does to the light beam.

For not much money, one can buy an elegant device that is specifically designed to do this job.

Or, for a quick demo using stuff that you might already have lying around, you can use a very dilute solution of milk in a small plastic container.

The colloidal fat does an excellent job of scattering just enough light to see what's going on. Just don't use too much -- a couple of drops in a half-cup of water is a good place to start.

Be sure also to use a flat-bottomed container.

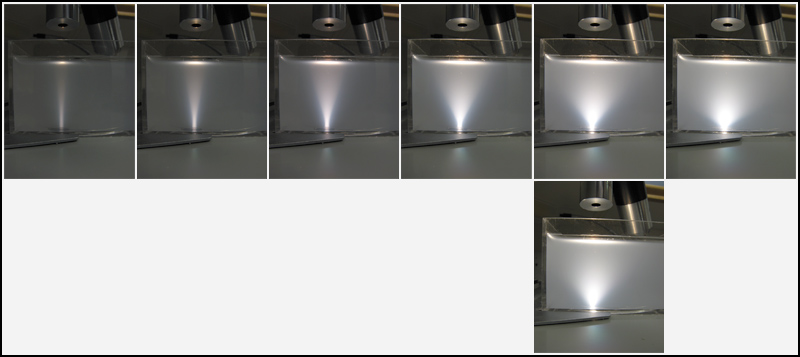

The illustration shown here is using the NA 1.2 condenser from an aus Jena Laboval 2 microscope.

The top row is with the plastic container "oiled" to the condenser using water. The bottom row is using the condenser dry, at maximum aperture, and demonstrates the narrower maximum cone imposed by using the condenser dry.

--Rik
Back to top
View user's profile Send private message Visit poster's website
Ken Ramos



Joined: 27 Jul 2006
Posts: 6909
Location: lat=35.4005&lon=-81.9841

PostPosted: Sun Dec 09, 2007 2:26 pm    Post subject: Reply with quote

You know this is one of those things I have often wondered about, "how it works" but have never bothered to ask. Good demonstration there Rik. Very Happy
_________________
However, while there is grace where in all that I might live, while there is still breath in my being, while I may or may not accomplish anything more in life than to be living, I shall reflect upon the past, applying it to the present, for to possibly perceive to a near certainty, the outcome of the future.

Ken 2014
Back to top
View user's profile Send private message
rjlittlefield
Site Admin


Joined: 01 Aug 2006
Posts: 17510
Location: Richland, Washington State, USA

PostPosted: Mon Dec 10, 2007 8:01 pm    Post subject: Reply with quote

Thanks, Ken.

BTW, in using this technique it's important that the milk be extremely dilute. If you put in too much milk, you "fuzz out" the path of the beam. The stuff I used in the photos above is about as dense as you can go and still get a good impression. For more careful work, you want a solution that you can see clearly through, with just the slightest "milkiness" to scatter a small amount of the beam sideways so you can see it.

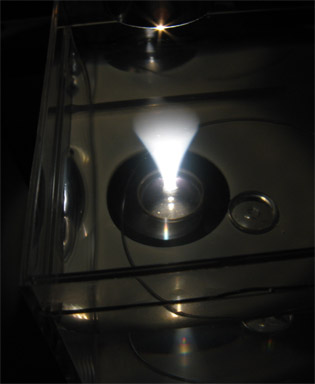

Here is an oblique view that shows what I mean. Notice that the microscope stage and condenser parts are still clearly seen through the dilute milk, which is about 1 inch thick in this setup.



The device I mentioned earlier uses a different mechanism -- it fluoresces rather than scatters. That allows a much brighter image of the beam without disturbing its path. Far superior if you need to give demos on a regular basis, or in a normally lighted room.

--Rik
Back to top
View user's profile Send private message Visit poster's website
Ken Ramos



Joined: 27 Jul 2006
Posts: 6909
Location: lat=35.4005&lon=-81.9841

PostPosted: Mon Dec 10, 2007 8:19 pm    Post subject: Reply with quote

The fancy green gadget has its purpose as far as being handy for demonstration but it seems your "homemade" device clearly shows more of the physical aspects (in 3D) of the beam of light itself passing from the condenser to the objectives. It may require a dark room but it is a much more informative means of demonstration or at least I would say so, especially in that last or second image you've shown. Very Happy
_________________
However, while there is grace where in all that I might live, while there is still breath in my being, while I may or may not accomplish anything more in life than to be living, I shall reflect upon the past, applying it to the present, for to possibly perceive to a near certainty, the outcome of the future.

Ken 2014
Back to top
View user's profile Send private message
Smokedaddy



Joined: 07 Oct 2006
Posts: 444
Location: Phoenix, Arizona

PostPosted: Thu Mar 02, 2017 7:38 pm    Post subject: Re: Visualizing the effect of a microscope's condenser apert Reply with quote

rjlittlefield wrote:


For not much money, one can buy an elegant device that is specifically designed to do this job.

--Rik


Out of curiosity what is the elegant device since the link is broken?

-JW:
Back to top
View user's profile Send private message Visit poster's website
rjlittlefield
Site Admin


Joined: 01 Aug 2006
Posts: 17510
Location: Richland, Washington State, USA

PostPosted: Thu Mar 02, 2017 9:09 pm    Post subject: Reply with quote

It was a cylinder made of fluorescent glass. In operation, glass inside the cylinder would glow green wherever it was touched by bright light from the condenser. Because the mechanism was fluorescence rather than scattering, there was no blurring or "fuzzing out" of the condenser beam.

The text of the missing page can be retrieved from the Internet Archive, currently at https://web.archive.org/web/20081121130854/http://www.roseoptics.com/DemoCylinder.htm . Unfortunately the images were not archived, and I cannot find them anywhere else.

--Rik
Back to top
View user's profile Send private message Visit poster's website
Smokedaddy



Joined: 07 Oct 2006
Posts: 444
Location: Phoenix, Arizona

PostPosted: Thu Mar 02, 2017 9:22 pm    Post subject: Reply with quote

Thanks ...
