Pectinate grooming apparatus on flying ant


Post new topic   Reply to topic    www.photomacrography.net Forum Index -> Macro and Close-up Archives
View previous topic :: View next topic
Author Message
rjlittlefield
Site Admin


Joined: 01 Aug 2006
Posts: 17426
Location: Richland, Washington State, USA

PostPosted: Wed Jul 04, 2007 10:59 pm    Post subject: Pectinate grooming apparatus on flying ant Reply with quote

In my previous post about the flying ants, we got to discussing the "long sharp spur" sticking down from the middle of the ant's front leg. These spurs are used for grooming, but from what can be seen in the earlier post, it's not obvious how that might work. From casual examination at low power, I had thought that the spur was merely thickened. Not so!

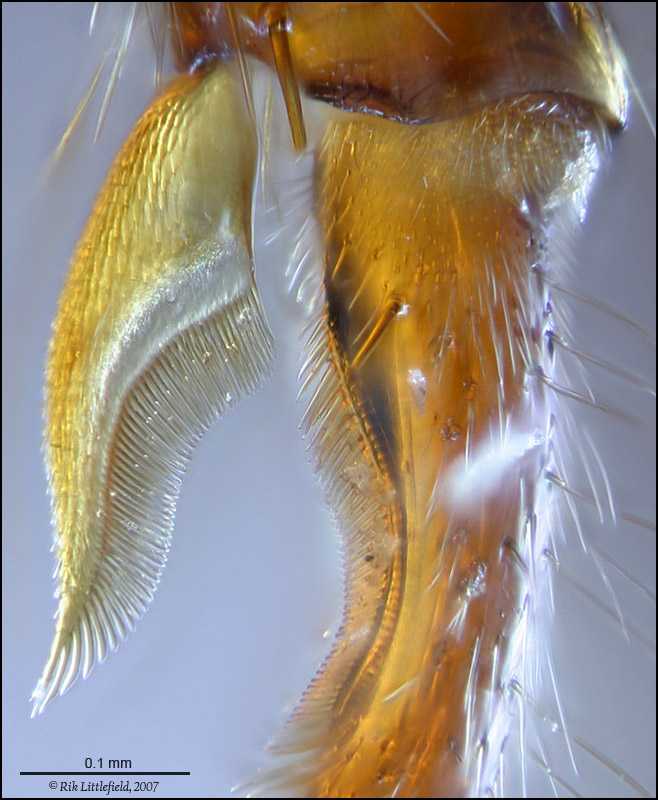

At much higher magnification the pectinate (comb like) structure becomes evident. With more detail showing, it's now pretty easy to imagine antennae being brushed clean as they get dragged through that curved gap between the spur and the first joint of the tarsus, where the matching comb is.

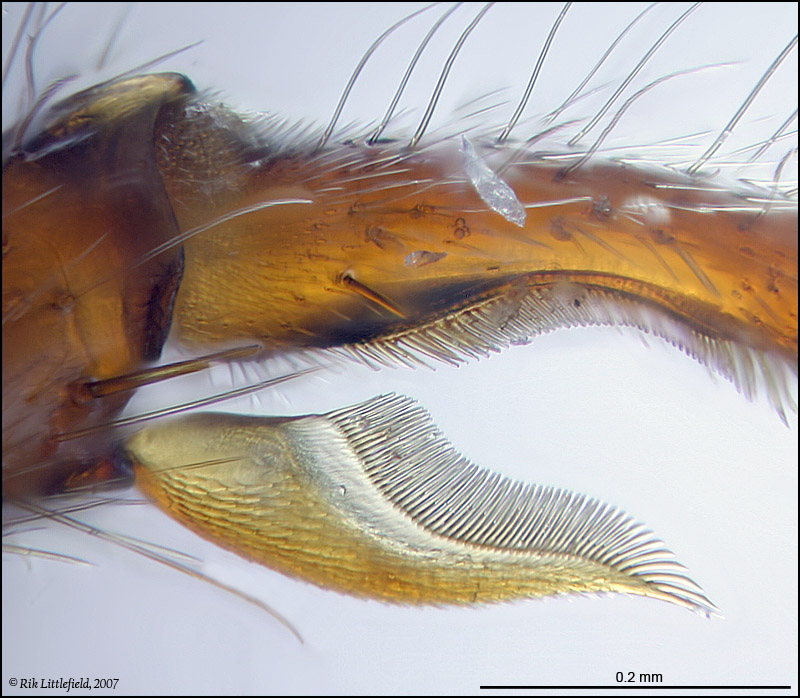

Shown here at about 400X on your monitor...




I confess, I find it difficult and tedious to adjust the subject pose and illumination with these high magnification stacks. The problem is, I can't tell exactly what I'm going to get by looking through the DSLR eyepiece -- because all I can see is one slice at a time! So I do the best I can by rocking the focus back and forth while playing with the lights, but I'm often surprised by what the stacked composite looks like. I'm not entirely happy with the illumination in these two shots, but I ran out of time to play with it, so these are what we get. Rolling Eyes

Hope you like 'em! Very Happy

--Rik

Technical: Canon 300D with 20X NA 0.40 achromat objective on 150mm extension, stacked using Helicon Focus at 4-5 micron steps (6 or 7 steps per 0.001"). Dual fiber halogen illuminator with Kleenex tissue diffuser.
Back to top
View user's profile Send private message Visit poster's website
Planapo



Joined: 07 Nov 2006
Posts: 1533
Location: Germany, in the United States of Europe

PostPosted: Wed Jul 04, 2007 11:34 pm    Post subject: Reply with quote

Rik, I am delighted how you´ve documented the cleaning apparatus.

One picture says more than a thousand words, especially when it has been photographed as perfectly as yours! Hence now all know what we were talking about in your previous post.

Best regards,
Betty
Back to top
View user's profile Send private message
Gordon C. Snelling



Joined: 13 Aug 2006
Posts: 300
Location: California

PostPosted: Thu Jul 05, 2007 5:24 am    Post subject: Reply with quote

Beautiful
_________________
Http://www.armyants.org
Http://www.notesfromunderground.org
Back to top
View user's profile Send private message
rjlittlefield
Site Admin


Joined: 01 Aug 2006
Posts: 17426
Location: Richland, Washington State, USA

PostPosted: Thu Jul 05, 2007 1:26 pm    Post subject: Reply with quote

Betty and Gordon, thanks for the compliments. It is nice to know that somebody besides myself likes these pictures! Very Happy

Here's an interesting question posed by a colleague at work:
Quote:
How big is this structure, compared to individual cells?

From the photos, it looks like the bristle spacing in the combs is around 8 microns.

If I read correctly, that's about the same as the diameter of a human red blood cell. I might speculate that each of those bristles is formed by a single cell, but of course such speculation is much more often wrong than right!

Do either of you know what the right answer is? How does the size of the comb structure correspond to the cells that form it?

Thanks much! Very Happy

--Rik
Back to top
View user's profile Send private message Visit poster's website
beetleman



Joined: 04 Aug 2006
Posts: 3578
Location: Southern New Hampshire USA

PostPosted: Thu Jul 05, 2007 3:06 pm    Post subject: Reply with quote

Wait a minute, Wait a minute. I think these pictures are awesome also Shocked Wink Incredible comes to mind too. Now what I want to know is "are they flexible or rigid" Pure science here.
_________________
Take Nothing but Pictures--Leave Nothing but Footprints.
Doug Breda
Back to top
View user's profile Send private message Send e-mail
Mike B in OKlahoma



Joined: 04 Aug 2006
Posts: 1048
Location: Oklahoma City

PostPosted: Thu Jul 05, 2007 3:56 pm    Post subject: Reply with quote

Rik, these are amazing!

It looks like the ant has some sort of fluid being held between the fibers of the "cleaner" somewhat like tap water stuck between teeth of a comb. Or is that something else entirely?
_________________
Mike Broderick
Oklahoma City, OK, USA

Constructive critiques of my pictures, and reposts in this forum for purposes of critique are welcome

"I must obey the inscrutable exhortations of my soul....My mandate includes weird bugs."
--Calvin
Back to top
View user's profile Send private message
rjlittlefield
Site Admin


Joined: 01 Aug 2006
Posts: 17426
Location: Richland, Washington State, USA

PostPosted: Thu Jul 05, 2007 6:54 pm    Post subject: Reply with quote

beetleman wrote:
Wait a minute, Wait a minute. I think these pictures are awesome also Shocked Wink

Hhmm, somehow what I wrote didn't come out exactly as I intended. Confused

Well, it's not the first time that has happened! Laughing

Moving on... Questions, you got questions.
Quote:
are they flexible or rigid

Quote:
...some sort of fluid..."

Hah, you guys are good! At the moment, I don't have a clue, but it'll be fun trying to find out.

I guess my expectation is that those teeth on the comb would be about as flexible as bristles of the same size. That means they'll be stiff in comparison to the floppiness of the joint in a dead specimen (the joint will flex before the tooth bends), but capable of being bent quite a bit without damage -- like deflection at the end that's several times their average diameter. How to relate that to the strength of the ant -- do they bend in use? -- now, that's a tricky question!

About the appearance of liquid, I agree, the images sure do look like it. But that specimen had not been exposed to any liquids or vapors other than air, and had also been exposed to warm dry air for quite a while before the pictures were taken. So if it is liquid, all I could guess would be some kind of oil. It's easy to be misled, however, by transparent structures at these magnifications. Sometimes a bit of overlap can look just like fluid merging of the structures. I'll see if I can figure it out from some other specimens. At the moment, I'm inclined to think it's just the visual appearance of overlap.

--Rik
Back to top
View user's profile Send private message Visit poster's website
Mike B in OKlahoma



Joined: 04 Aug 2006
Posts: 1048
Location: Oklahoma City

PostPosted: Thu Jul 05, 2007 7:03 pm    Post subject: Reply with quote

My earlier viewing was done on a monitor at work. Looking at these on my better home monitor, I think the appearance of fluid is a change in the thickness/nature of the grooming bristles. But not positive of that.
_________________
Mike Broderick
Oklahoma City, OK, USA

Constructive critiques of my pictures, and reposts in this forum for purposes of critique are welcome

"I must obey the inscrutable exhortations of my soul....My mandate includes weird bugs."
--Calvin
Back to top
View user's profile Send private message
rjlittlefield
Site Admin


Joined: 01 Aug 2006
Posts: 17426
Location: Richland, Washington State, USA

PostPosted: Thu Jul 05, 2007 9:44 pm    Post subject: Reply with quote

And the answer is...

They're dry and flexible.

See followup posting in the Micro forum. Very Happy

--Rik
Back to top
View user's profile Send private message Visit poster's website
Ken Ramos



Joined: 27 Jul 2006
Posts: 6909
Location: lat=35.4005&lon=-81.9841

PostPosted: Fri Jul 06, 2007 7:39 am    Post subject: Reply with quote

Geez...I'm really late in getting to this post, look at all those replies. Rolling Eyes Well all I was going to say is that I like these much better than those over the shoulder, panic stricken ones. Laughing Much more detailed too! Very Happy
_________________
However, while there is grace where in all that I might live, while there is still breath in my being, while I may or may not accomplish anything more in life than to be living, I shall reflect upon the past, applying it to the present, for to possibly perceive to a near certainty, the outcome of the future.

Ken 2014
Back to top
View user's profile Send private message
Sven Bernert



Joined: 04 Mar 2007
Posts: 56
Location: Switzerland

PostPosted: Sat Jul 07, 2007 5:49 am    Post subject: Reply with quote

I'm with Ken! Laughing

Rik, very cool stuff technically.

Sven
_________________
If you are out there shooting, things will happen for you. If you're not out there, you'll only hear about it. - Jay Maisel
Back to top
View user's profile Send private message Send e-mail Visit poster's website
