Horizontal banding on Canon T6i (750D)
Goto page 1, 2  Next

Post new topic   Reply to topic    www.photomacrography.net Forum Index -> Equipment Discussions
View previous topic :: View next topic
Author Message
pwnell



Joined: 18 Dec 2009
Posts: 1921
Location: Tsawwassen, Canada

PostPosted: Mon Feb 29, 2016 5:09 pm    Post subject: Horizontal banding on Canon T6i (750D) Reply with quote

Has anyone seen this before - brand new Canon T6i (750D). I pushed the image to improve the visibility of these artifacts - they are just visible without any processing (100% crop - these bands are from a landscape oriented photo so the bands are in fact parallel to the long edge of the sensor).



Last edited by pwnell on Mon Feb 29, 2016 7:39 pm; edited 1 time in total
Back to top
View user's profile Send private message
Chris S.
Site Admin


Joined: 05 Apr 2009
Posts: 2796
Location: Ohio, USA

PostPosted: Mon Feb 29, 2016 5:42 pm    Post subject: Reply with quote

Waldo,

I don't know anything about this camera, but I see that over at the Cloudy Nights astronomy forum, member JamieHammondM78 has posted a pair of images showing similar banding from his Canon 750D. If this were a widespread problem, as was banding with a certain Nikon body a few years ago, there would likely be many more examples online.

Have you tried a different memory card? I've seen write-ups showing varied image problems from a bad card. If tethering and saving to computer, any chance of a cable problem? Barring these, I'd likely be looking to return this camera, in your shoes.

Please let us know what you find. And good luck!

--Chris
Back to top
View user's profile Send private message Send e-mail
pwnell



Joined: 18 Dec 2009
Posts: 1921
Location: Tsawwassen, Canada

PostPosted: Mon Feb 29, 2016 6:17 pm    Post subject: Reply with quote

Chris S. wrote:
I don't know anything about this camera, but I see that over at the Cloudy Nights astronomy forum, member JamieHammondM78 has posted a pair of images showing similar banding from his Canon 750D. If this were a widespread problem, as was banding with a certain Nikon body a few years ago, there would likely be many more examples online.

That is exactly the same pattern I see - 7 bands consisting of two vertically separated lines running across the sensor.

Chris S. wrote:
Have you tried a different memory card? I've seen write-ups showing varied image problems from a bad card. If tethering and saving to computer, any chance of a cable problem?

I have a memory card in there (which never gave me any issues - top of the line Sandisk). However, this was tethered via the supplied USB cable straight to the PC.

I am tempted to take it back...
Back to top
View user's profile Send private message
pwnell



Joined: 18 Dec 2009
Posts: 1921
Location: Tsawwassen, Canada

PostPosted: Tue Mar 01, 2016 4:16 pm    Post subject: Reply with quote

I find the pattern fascinating - and it really feels that by analyzing the morphology of this pattern one can deduce where it is coming from. The regularity rules out (for me) USB cables, noise, interference etc. This feels like a sensor design issue. Anyone with insights?

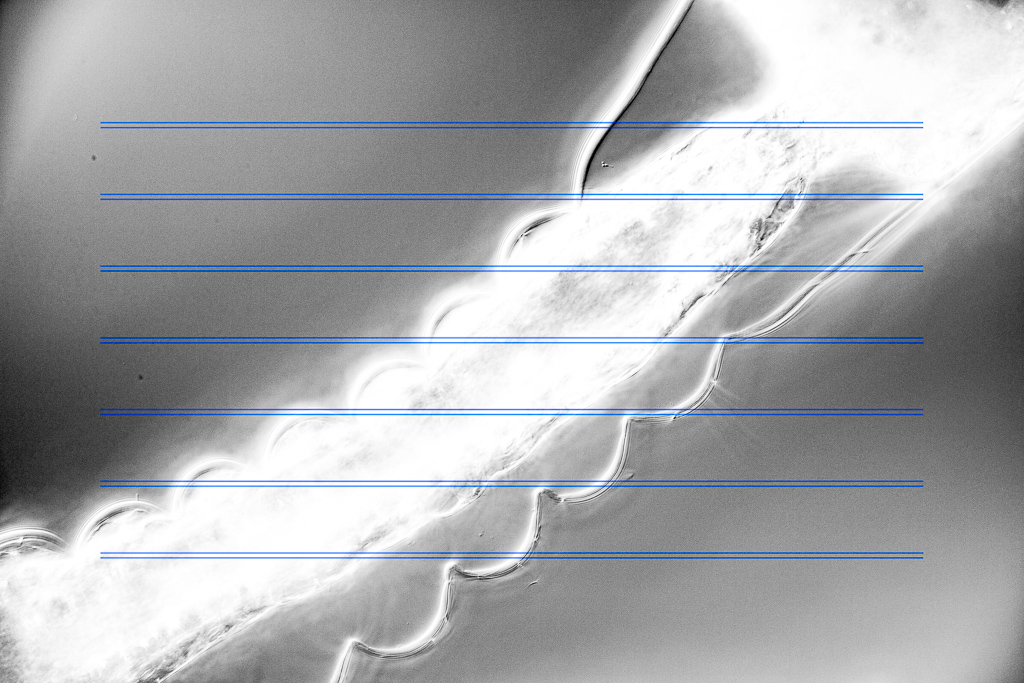

full frame - heavily processed and blue lines drawn over sensor lines for clarity

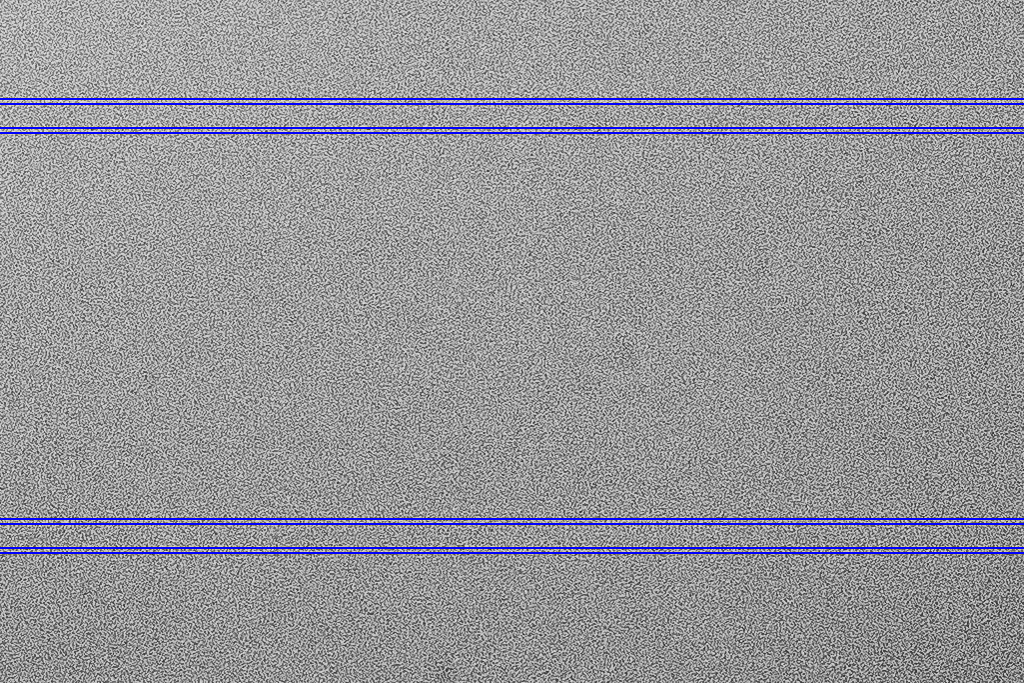

100% crop
Back to top
View user's profile Send private message
pwnell



Joined: 18 Dec 2009
Posts: 1921
Location: Tsawwassen, Canada

PostPosted: Tue Mar 01, 2016 4:45 pm    Post subject: Reply with quote

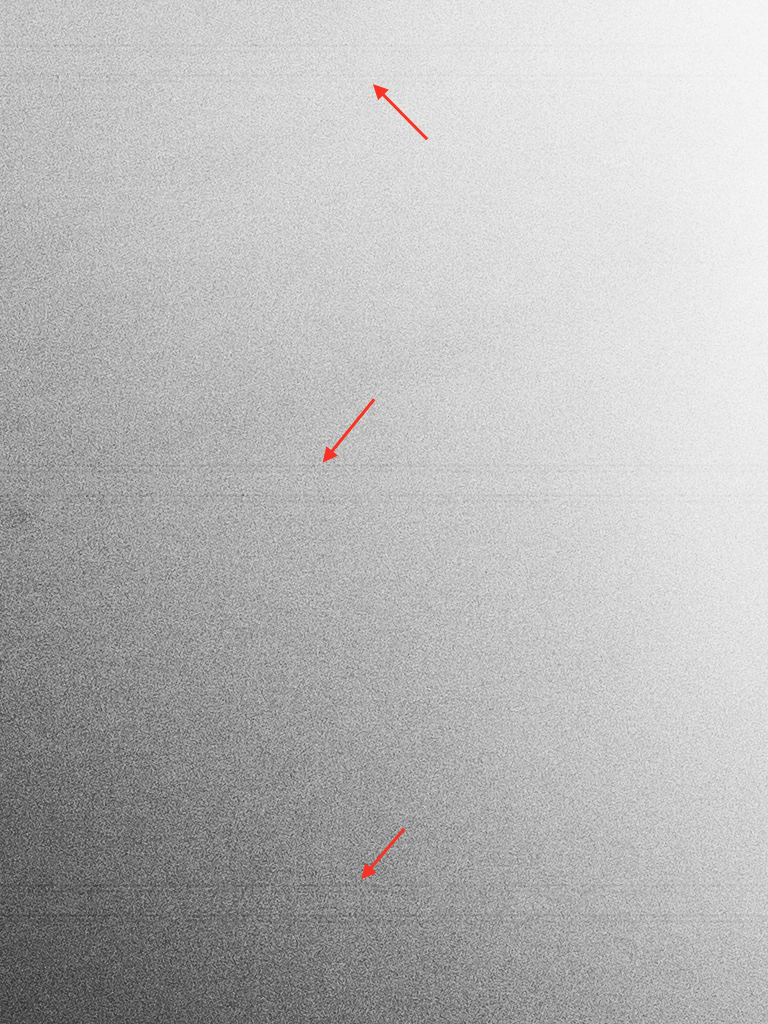

This is definitely not a defective camera. I picked up a T6s (760D) and it has the same defect. I know it shares the same sensor with the 750D and Chris showed that this is present in the 700D too (T5i), which uses a different sensor.

Can you guys with T5i / T6i / T6s confirm this behaviour? To highlight it I pushed exposure, contrast, reduced whites, pushed clarity all the way, added lots of sharpening at radius 2, removed saturation and used photoshop's dehaze.

I know - it seems like I am trying my best to find something that is not normally visible, and I would agree if I were using this camera for photos of dogs in bushes, but most of my images are DIC with smooth gradient backgrounds and against that it is visible, if only just.

Edit: I am willing to bet my cat that these lines are caused by the Hybrid CMOS AF III system in the 750D/760D cameras. Look at this layout:


Source

DP Review Article

Flickr Discussion
Back to top
View user's profile Send private message
Chris S.
Site Admin


Joined: 05 Apr 2009
Posts: 2796
Location: Ohio, USA

PostPosted: Tue Mar 01, 2016 7:37 pm    Post subject: Reply with quote

pwnell wrote:
I am willing to bet my cat that these lines are caused by the Hybrid CMOS AF III system in the 750D/760D cameras.

I'm pretty sure you've figured it out, Waldo. Look at this photograph taken by Lensrentals.com. One can easily see the lines of Phase Detect Auto-Focus (PDAF) pixels on the sensor. (Note that while the link discusses a defect, these lines are not that defect. They are there by design. The defect is the plethora of dots that look like dust, but lie below the sensor's glass cover.)

Curmudgeon hat on: So now, autofocus has progressed from being a useless, new-fangled gimmick that can be turned off and ignored, to something that fouls up our photography even when turned off. Lovely. Curmudgeon hat off. Wink

--Chris
Back to top
View user's profile Send private message Send e-mail
pwnell



Joined: 18 Dec 2009
Posts: 1921
Location: Tsawwassen, Canada

PostPosted: Tue Mar 01, 2016 11:19 pm    Post subject: Reply with quote

Indeed. I have returned the T6s for a 7D II since the 80D is still unchartered waters and 3 months away for me. So far so good - the dual pixel AF technology definitely does not exhibit these line artifacts. And so far I have not yet seen any vibration issues at 60x/1.2 (water immersion with yeast cells). I will experiment some more - but I am convinced that the T6i/T6s is not for us - smooth uniform background coupled with contrast boosting and potential stacking, results in very visible lines ruining the image.
Back to top
View user's profile Send private message
rjlittlefield
Site Admin


Joined: 01 Aug 2006
Posts: 18091
Location: Richland, Washington State, USA

PostPosted: Wed Mar 02, 2016 1:53 am    Post subject: Reply with quote

pwnell wrote:
... but I am convinced that the T6i/T6s is not for us - smooth uniform background coupled with contrast boosting and potential stacking, results in very visible lines ruining the image.

I'm still not convinced that this is a universal feature of these cameras, but I agree that when it occurs, it's not acceptable. My first contact with these lines was last spring (April 2015), when nielsgeode asked for a comparison of images from two sensors. The images were too different from each other to tell much, but my attention was immediately drawn to "three sets of horizontal dark streaks, two obvious and one set more subtle, running clear through a completely OOF region". We thought at the time that it was a manufacturing defect. But if it is, then apparently it's one that Canon does yet not have completely under control. Sad

What puzzles me at this moment is why this issue is not corrected as part of raw development. I suppose that there's something about the sensor structure that would prevent perfect correction for all scenes. After all, those pixels have to see things differently depending somehow on focus. But to have the lines be visible even with essentially featureless uniform lighting just seems like messed up engineering.

--Rik
Back to top
View user's profile Send private message Visit poster's website
pwnell



Joined: 18 Dec 2009
Posts: 1921
Location: Tsawwassen, Canada

PostPosted: Wed Mar 02, 2016 9:16 am    Post subject: Reply with quote

Apparently Canon replied to one user complaining about this:

Quote:
Canon is able to reproduce the stripes. The stripes will appear in those areas where the pixels for the AF are located. This is causing a lower density of image pixels in those areas. This not a lack of quality, since the effect will be seen only if heavy post-processing is applied. If applied PP is on a normal level, the effect will not be visible
Back to top
View user's profile Send private message
TheLostVertex



Joined: 22 Sep 2011
Posts: 292
Location: Florida

PostPosted: Thu Mar 03, 2016 1:06 pm    Post subject: Reply with quote

I just came across this thread, so I thought Id link you to another resource. http://www.magiclantern.fm/forum/index.php?topic=16054.0 People over at ML have noticed this issue(more prevalent in their modified usage).

The main way camera companies deal with this is by interpolating adjacent pixels. I guess canon isnt doing a great job with that here. I would assume it is a design/engineering error. Other companies have been using this on sensor AF technology as well, since it is mainly a video feature, and marketing toward video users seems to be popular these days.

I will guess, as always, this will be a case by case issue to watch out for.
_________________
-Steven
Flickr Macro Rig Control Software
Back to top
View user's profile Send private message
Radioman67



Joined: 03 May 2016
Posts: 1

PostPosted: Wed May 04, 2016 2:35 am    Post subject: Reply with quote

Hello everybody. I also use a Canon 760D camera. I am very disappointed with this camera and Canon. When shooting at slow shutter speeds of up to 300 seconds, ISO400 I got this bad photo. This addition of 15 frames.


Last edited by Radioman67 on Wed May 04, 2016 2:43 am; edited 1 time in total
Back to top
View user's profile Send private message
Pau
Site Admin


Joined: 20 Jan 2010
Posts: 3890
Location: Valencia, Spain

PostPosted: Wed May 04, 2016 5:15 am    Post subject: Reply with quote

To me it seems evident that is a design defect (stupid design decision) but I guess that it could be cancelled at image raw conversion IF it is computed at the converter.

Have you tried shooting raw and processing the files with Canon own Digital Photo Professional or just shooting in camera jpg?
_________________
Pau
Back to top
View user's profile Send private message
Radioman67



Joined: 03 May 2016
Posts: 1

PostPosted: Wed May 04, 2016 5:57 am    Post subject: Reply with quote


This picture after edit in Digital Photo Professional Laughing Laughing Laughing .
This single frame ISO400, 300sec.
Back to top
View user's profile Send private message
Pau
Site Admin


Joined: 20 Jan 2010
Posts: 3890
Location: Valencia, Spain

PostPosted: Wed May 04, 2016 9:37 am    Post subject: Reply with quote

Really unacceptable.

(When you say This picture after edit in Digital Photo Professional I assume that it is processed from raw original file)
_________________
Pau
Back to top
View user's profile Send private message
ChrisR
Site Admin


Joined: 14 Mar 2009
Posts: 7134
Location: Near London, UK

PostPosted: Thu May 05, 2016 2:57 am    Post subject: Reply with quote

Radioman67 wrote:
I am very disappointed with this camera and Canon.
As would I be. Evil or Very Mad It will be interesting to hear whether the sensor change in the 80D gets rid of this fault, or if any of their full frame sensors reproduces it.
_________________
Chris R
Back to top
View user's profile Send private message
