ploum
Posts: 172
Joined: Sat Oct 18, 2014 6:35 am

Post by ploum »

Increasing (i'dont' know in english for gamma) is constant for each position of L1.

gamma is constant for each distance between object-L1. I can move object several time and gamma is constant....

When i move L2, gamma is not constant but i move a little bit ;)and dw/de is not big.
I work with a manfrotto 454 but uncommon system. No limitation, no motorisation, good precision.
Objective : rodagon 135 mm, BW APO 2x, Compon S 80 mm, nikon CFI 4x, APO componon 40 mm, componon 28 mm, APO plan 10x, Mitutoyo APO 10x, BW APO SLWD 20x. Nikon CF EPI 10x, APO SEIWA 20x, MACRO ZUIKO 35 mm, nikon MPLAN ELWD 0.5 40x, NIKON CFI PF 10x.

rjlittlefield
Site Admin
Posts: 21277
Joined: Tue Aug 01, 2006 8:34 am
Location: Richland, Washington State, USA
Contact:

Post by rjlittlefield »

rjlittlefield wrote:Frederic, are you really telling us that the red arrow in this diagram is 25 cm (=250 mm) ??

If the diagram is to scale it looks more like 4 or 5 cm (=40 or 50 mm).

ploum wrote:Yes i have change this distance now :) = 25 cm !!! :wink:
OK.

So then your diagram is either out of date or not to scale.

In either case it is not much help.

I do not understand your ray diagrams either. It looks to me like your ray diagrams show only two lenses, but your system has three lenses.

I think no one else will use your system if they don't understand it.

Again, I recommend to show a photograph of your system, with a ruler in the picture, with all lenses showing (not hidden inside tubes).

Perhaps then we will be able to understand.

Best regards,
--Rik

ploum
Posts: 172
Joined: Sat Oct 18, 2014 6:35 am

Post by ploum »

Hum objective + lens tube = 1 lens for me = L1

For example with a x10 that means image is 10 x more tall with a lens of 20 mm (lens tube = 200 mm but it's not important).

In my case raynox is L2

It's possible to change my system with 2 lens fixed. In this case just object or just camera (without nothing exept for dust) move. Gamma could be constant if i see the simulator.
I work with a manfrotto 454 but uncommon system. No limitation, no motorisation, good precision.
Objective : rodagon 135 mm, BW APO 2x, Compon S 80 mm, nikon CFI 4x, APO componon 40 mm, componon 28 mm, APO plan 10x, Mitutoyo APO 10x, BW APO SLWD 20x. Nikon CF EPI 10x, APO SEIWA 20x, MACRO ZUIKO 35 mm, nikon MPLAN ELWD 0.5 40x, NIKON CFI PF 10x.

rjlittlefield
Site Admin
Posts: 21277
Joined: Tue Aug 01, 2006 8:34 am
Location: Richland, Washington State, USA
Contact:

Post by rjlittlefield »

ploum wrote:Hum objective + lens tube = 1 lens for me = L1
Then why did you increase the separation between those to 25 cm?

--Rik

ploum
Posts: 172
Joined: Sat Oct 18, 2014 6:35 am

Post by ploum »

Because i don't want rebuilt my system :). More short is normally the same thing.

I work with a manfrotto 454 but uncommon system. No limitation, no motorisation, good precision.
Objective : rodagon 135 mm, BW APO 2x, Compon S 80 mm, nikon CFI 4x, APO componon 40 mm, componon 28 mm, APO plan 10x, Mitutoyo APO 10x, BW APO SLWD 20x. Nikon CF EPI 10x, APO SEIWA 20x, MACRO ZUIKO 35 mm, nikon MPLAN ELWD 0.5 40x, NIKON CFI PF 10x.

rjlittlefield
Site Admin
Posts: 21277
Joined: Tue Aug 01, 2006 8:34 am
Location: Richland, Washington State, USA
Contact:

Post by rjlittlefield »

Frederic,

At http://www.photomacrography.net/forum/v ... 560#177560 , you wrote:
ploum wrote:tube lens is Inside

Change DCR 250 by DCR 150

lens tube is more far than objectif = 25 cm

Camera 0 cm - lens RAYNOX 8 cm - Lens tube 18 cm - 43 cm objective
Does that description match this last photograph?

Do I understand correctly, that you have the Raynox DCR-150 stuck directly on the front of the camera, with no added extension?

--Rik

ploum
Posts: 172
Joined: Sat Oct 18, 2014 6:35 am

Post by ploum »

Small extension = 8 cm between sensor and raynox dcr 150 and 8 cm between raynox and lens tube.
I work with a manfrotto 454 but uncommon system. No limitation, no motorisation, good precision.
Objective : rodagon 135 mm, BW APO 2x, Compon S 80 mm, nikon CFI 4x, APO componon 40 mm, componon 28 mm, APO plan 10x, Mitutoyo APO 10x, BW APO SLWD 20x. Nikon CF EPI 10x, APO SEIWA 20x, MACRO ZUIKO 35 mm, nikon MPLAN ELWD 0.5 40x, NIKON CFI PF 10x.

soldevilla
Posts: 580
Joined: Thu Dec 16, 2010 2:49 pm
Location: Barcelona, more or less

Post by soldevilla »

A question... the lumix have their objective attached between the Raynox and the body camera? or there is only the Raynox in front of Lumix body?

ploum
Posts: 172
Joined: Sat Oct 18, 2014 6:35 am

Post by ploum »

In this system Lumix is alone.... with is raynox. I try an variation with a fixed raynox and a lumix alone without raynox fixed....

The blue cross with a fov 1.1 mm is done like that.
I work with a manfrotto 454 but uncommon system. No limitation, no motorisation, good precision.
Objective : rodagon 135 mm, BW APO 2x, Compon S 80 mm, nikon CFI 4x, APO componon 40 mm, componon 28 mm, APO plan 10x, Mitutoyo APO 10x, BW APO SLWD 20x. Nikon CF EPI 10x, APO SEIWA 20x, MACRO ZUIKO 35 mm, nikon MPLAN ELWD 0.5 40x, NIKON CFI PF 10x.

ploum
Posts: 172
Joined: Sat Oct 18, 2014 6:35 am

Post by ploum »

Hi,

sorry for my english. I have rebuilt my system. Now, it' more short.

camera move alone without lens.

Here i present photo of target 1 mm with 45° angle.

I a use width growth Gz in my system. Gz = Gy* Gy

for delta Z object = 0.7/1.41 = 0.5 mm camera advance for 20 mm.

Gz = 40 and Gy = 6.2. These 6.2x is obtain with an objetive x10 with raynox dcr 250 with focal distance of 125 mm ( x10 * (125/200).


I work with a manfrotto 454 but uncommon system. No limitation, no motorisation, good precision.
Objective : rodagon 135 mm, BW APO 2x, Compon S 80 mm, nikon CFI 4x, APO componon 40 mm, componon 28 mm, APO plan 10x, Mitutoyo APO 10x, BW APO SLWD 20x. Nikon CF EPI 10x, APO SEIWA 20x, MACRO ZUIKO 35 mm, nikon MPLAN ELWD 0.5 40x, NIKON CFI PF 10x.

ploum
Posts: 172
Joined: Sat Oct 18, 2014 6:35 am

Post by ploum »

With an angle of 30° of mire. I obtain these 3 images.

4x ON=0.1 sharp for 120 microm => width 60 micrometer
5x ON=0.14 sharp for 70 microcom = width 35 micrometer
10x ON= 0.28 sharp for 20 microm =>width 10 micrometer

Last edited by ploum on Sat Nov 14, 2015 6:10 am, edited 2 times in total.
I work with a manfrotto 454 but uncommon system. No limitation, no motorisation, good precision.
Objective : rodagon 135 mm, BW APO 2x, Compon S 80 mm, nikon CFI 4x, APO componon 40 mm, componon 28 mm, APO plan 10x, Mitutoyo APO 10x, BW APO SLWD 20x. Nikon CF EPI 10x, APO SEIWA 20x, MACRO ZUIKO 35 mm, nikon MPLAN ELWD 0.5 40x, NIKON CFI PF 10x.

ploum
Posts: 172
Joined: Sat Oct 18, 2014 6:35 am

Post by ploum »

Numerical aperture =AN

Width of field WF is a fonction of AN

i found WF = k/(AN*AN)

with my measure i found k = 0.6 (in micrometer)

And width of stacking

Width Staking = Gz x PdC = Gy[sup]2[/sup] x pdc = [Gobjective x (focale lens /focale standard]2)x (k/ON[sup]2[/sup])

Give 2x and ON= 0.055 => WS = 300 micrometers
          5x and ON = 0.14 => WS = 300 micrometers
          10x and ON = 0.28 => WS = 300 micrometers
        20x and ON = 0.42 => = 550 micrometers
I work with a manfrotto 454 but uncommon system. No limitation, no motorisation, good precision.
Objective : rodagon 135 mm, BW APO 2x, Compon S 80 mm, nikon CFI 4x, APO componon 40 mm, componon 28 mm, APO plan 10x, Mitutoyo APO 10x, BW APO SLWD 20x. Nikon CF EPI 10x, APO SEIWA 20x, MACRO ZUIKO 35 mm, nikon MPLAN ELWD 0.5 40x, NIKON CFI PF 10x.

ploum
Posts: 172
Joined: Sat Oct 18, 2014 6:35 am

Post by ploum »

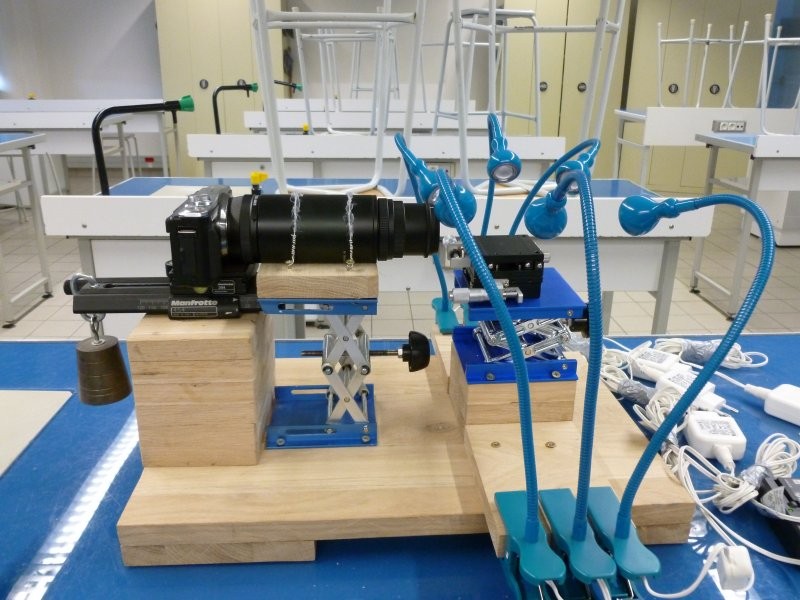

Scolar system...

Same but a little more simple

I work with a manfrotto 454 but uncommon system. No limitation, no motorisation, good precision.
Objective : rodagon 135 mm, BW APO 2x, Compon S 80 mm, nikon CFI 4x, APO componon 40 mm, componon 28 mm, APO plan 10x, Mitutoyo APO 10x, BW APO SLWD 20x. Nikon CF EPI 10x, APO SEIWA 20x, MACRO ZUIKO 35 mm, nikon MPLAN ELWD 0.5 40x, NIKON CFI PF 10x.

ploum
Posts: 172
Joined: Sat Oct 18, 2014 6:35 am

Post by ploum »

Here a link for calculte width of field...

http://www.alpinismeetmineraux.fr/miner ... ro/pdc.ods
I work with a manfrotto 454 but uncommon system. No limitation, no motorisation, good precision.
Objective : rodagon 135 mm, BW APO 2x, Compon S 80 mm, nikon CFI 4x, APO componon 40 mm, componon 28 mm, APO plan 10x, Mitutoyo APO 10x, BW APO SLWD 20x. Nikon CF EPI 10x, APO SEIWA 20x, MACRO ZUIKO 35 mm, nikon MPLAN ELWD 0.5 40x, NIKON CFI PF 10x.

ploum
Posts: 172
Joined: Sat Oct 18, 2014 6:35 am

Post by ploum »

Here a link in french

I explain than diffraction is predominante to circle of confusion. This circle don't exist in normal use (sensor definition superior at image résolution)

For mitutoyo's objective and APS-C 24 Mpix only diffaction exist


http://www.geoforum.fr/topic/31650-stac ... tre/page-2
I work with a manfrotto 454 but uncommon system. No limitation, no motorisation, good precision.
Objective : rodagon 135 mm, BW APO 2x, Compon S 80 mm, nikon CFI 4x, APO componon 40 mm, componon 28 mm, APO plan 10x, Mitutoyo APO 10x, BW APO SLWD 20x. Nikon CF EPI 10x, APO SEIWA 20x, MACRO ZUIKO 35 mm, nikon MPLAN ELWD 0.5 40x, NIKON CFI PF 10x.
